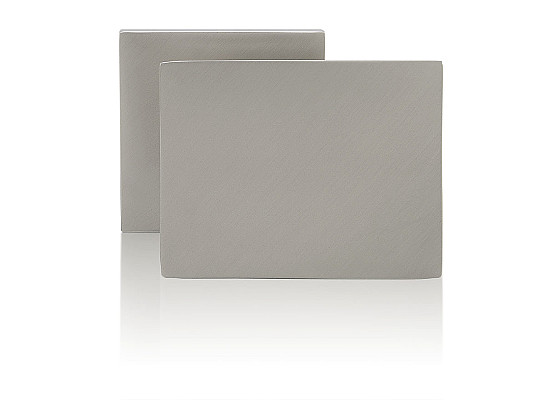

Door hand grip Mimolimit

HAND GRIP SURFACES
12 surfaces

SNi

SNi - grinded

Ms-L

Cr-K

TiN-C

TiN-K

TiN-B

TiN-A

NRz

K-industrial

more about the surface

zoom

Hand grips and knobs in 9 designs

Technical informations

Specifications
Dimensions

MATERIAL

Massive brass, grinded and polished, stainless steel

AVAILABLE SURFACE FINISHES

Nickel matt - grinded, glossy chrome, black chrome, titanium surfaces, brass natural, stainless steel - grinded, black matt structured

MOUNTING

Screwing against each other in the prepared holes through the door

DIMENSIONAL APPLICATION

For wooden, plastic and aluminium doors, for the door thickness 38 - 85 mm, for glass doors 8 – 12 mm

ACCESSORIES

The package includes:
- fasteners
- assembly instructions
- warranty card

WARRANTY

Surfaces 3 years for nickel and chrome, 5 years stainless steel and black chrome, black matt structured 5 years, titanium 15 years, brass natural life time guarantee

APPLICATIONS

Depending on the surface for interior and exterior doors, for door weight up to 60 kg.

SET

A paar of hand grips.

material brass
Rozměry

material stainless steel
Rozměry

Order numbers

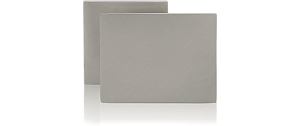

HAND GRIP ENTERO	SNi nickel matt	SNi nickel matt brushed	Cr glossy chrome	Ms brass natural	Ms-L brass polished	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-B titanium brown matt	TiN-A titanium brass matt
HAND GRIP ENTERO	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN
glass thickness 8 - 12 mm	028102	35201	35218	062274	062311	35232	35249	35256	35225
Doorthickness 37 - 50 mm	028072	69503	69510	062243	062281	69534	69541	69558	69527
Doorthickness 51 - 68 mm	028089	73975	73999	062250	062298	74033	74057	74071	74019
Doorthickness 69 - 85 mm	028096	73982	74002	062267	062304	74040	74064	74088	74026

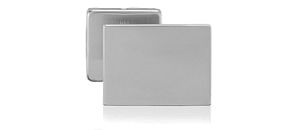

HAND GRIP ENTERO	NRz stainless steel	TiN-K titanium black	K-industrial
HAND GRIP ENTERO	EAN	EAN	EAN
Glass thickness 8 - 10 mm	025095	025132	034554
Doorthickness 37 - 50 mm	025064	025101	034523
Doorthickness 51 - 68 mm	025071	025118	034530
Doorthickness 69 - 85 mm	025088	025125	034547

All types of handles are fixed non-rotating. A variant with a rotating Entero handle can be prepared to order.

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.
