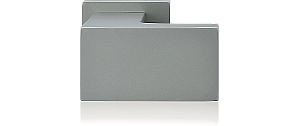

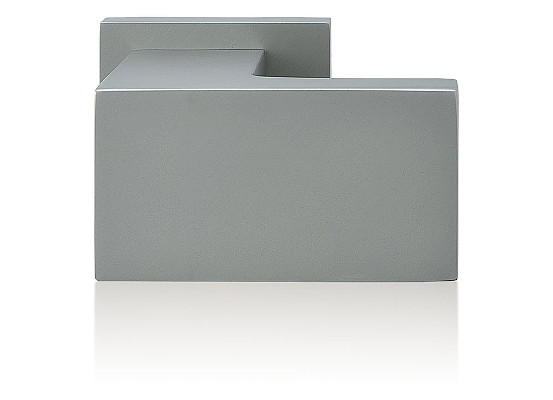

Door hand grip Entry | Catalogue M&T

HAND GRIP SURFACES
9 surfaces

SNi

SNi - grinded

Ms-L

TiN-C

TiN-K

TiN-B

TiN-A

more about the surface

zoom

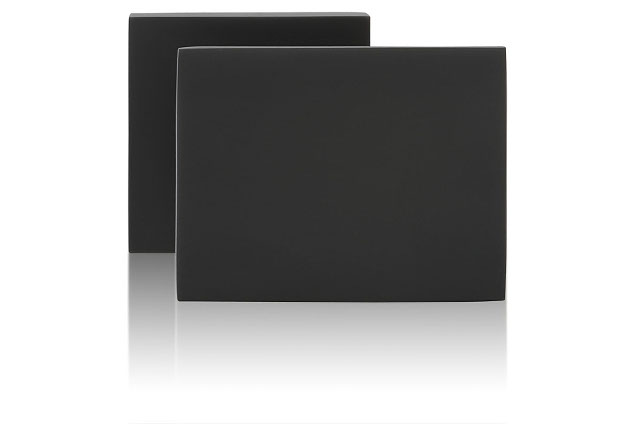

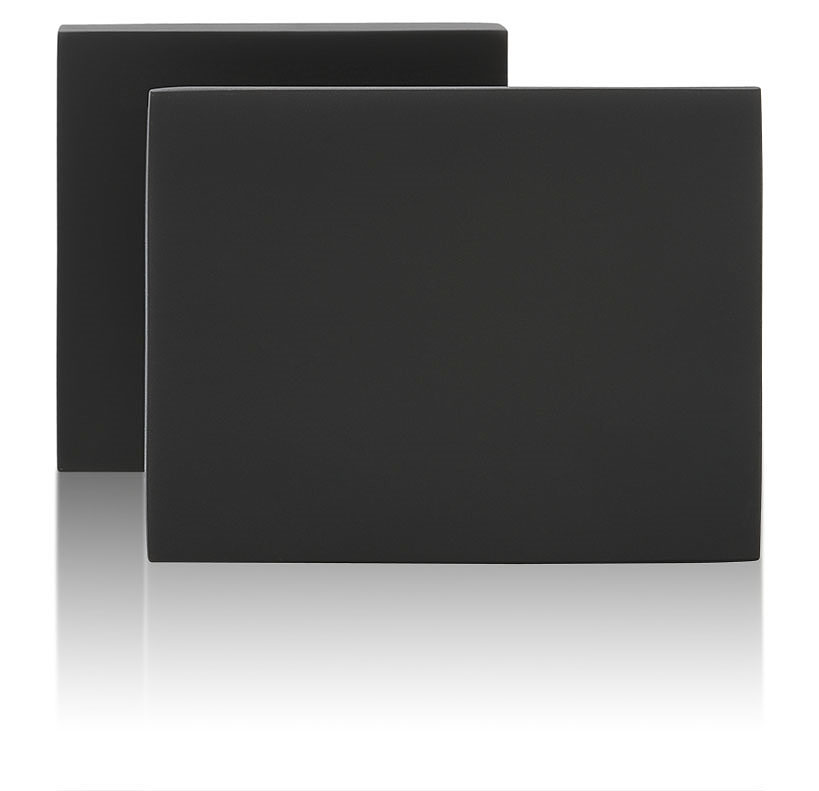

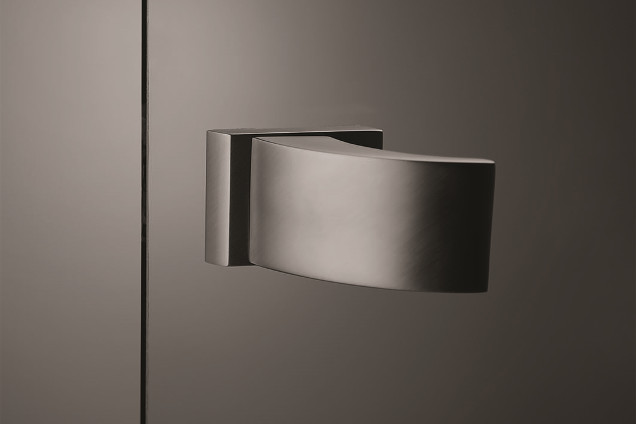

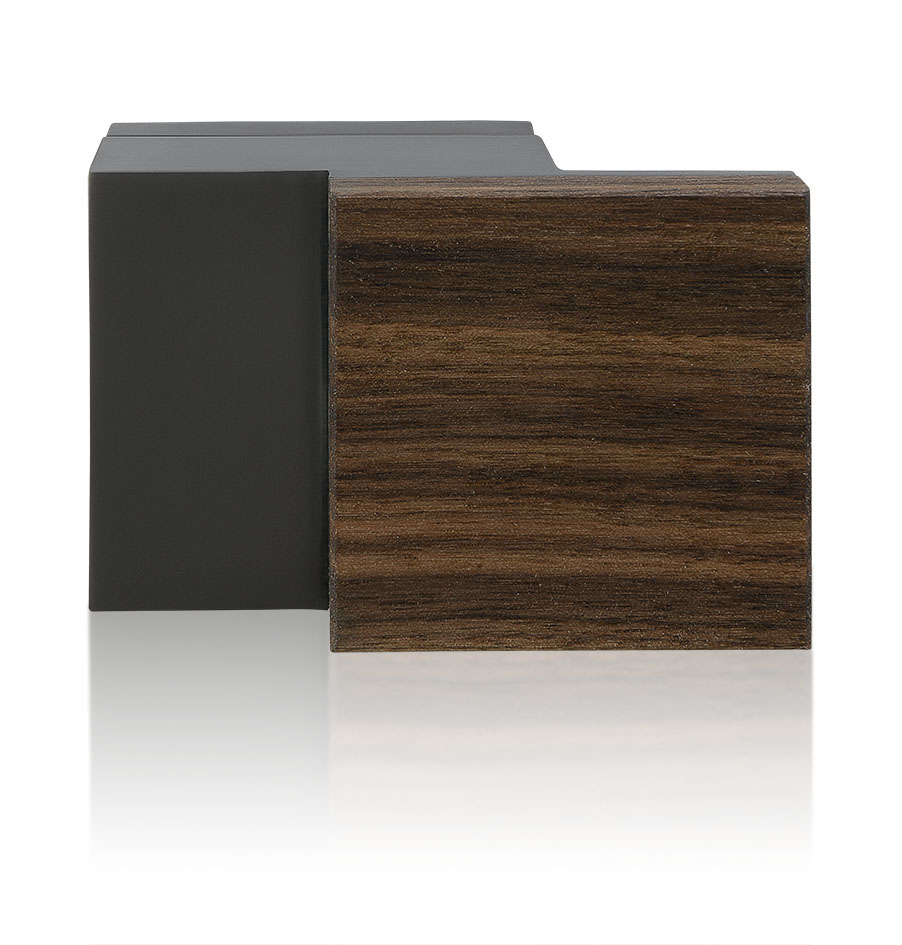

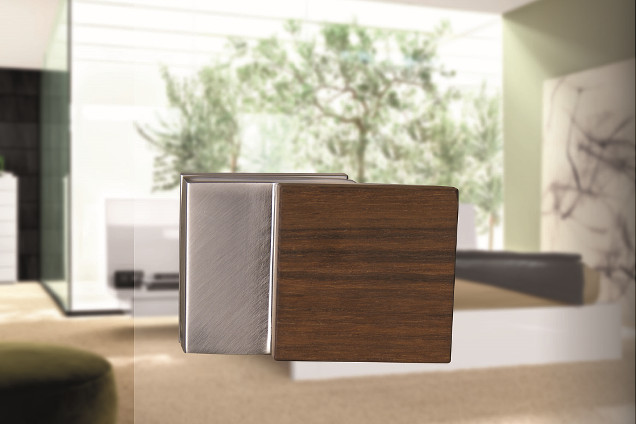

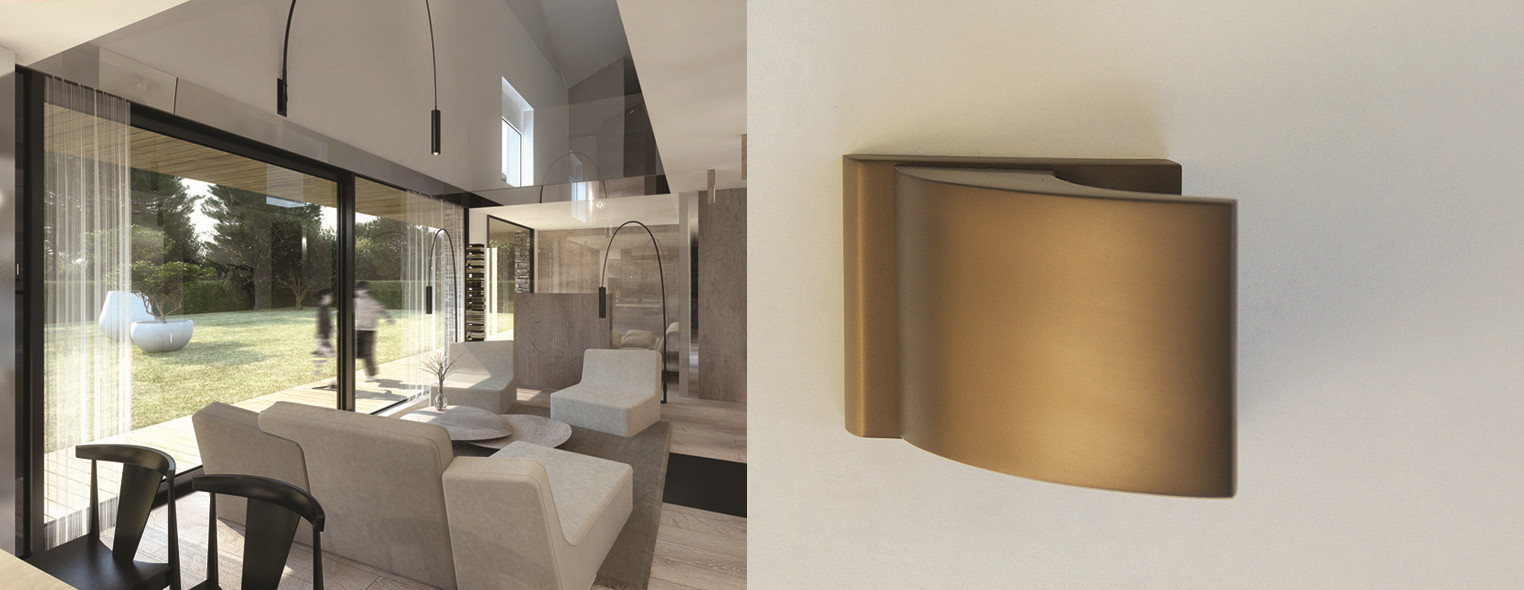

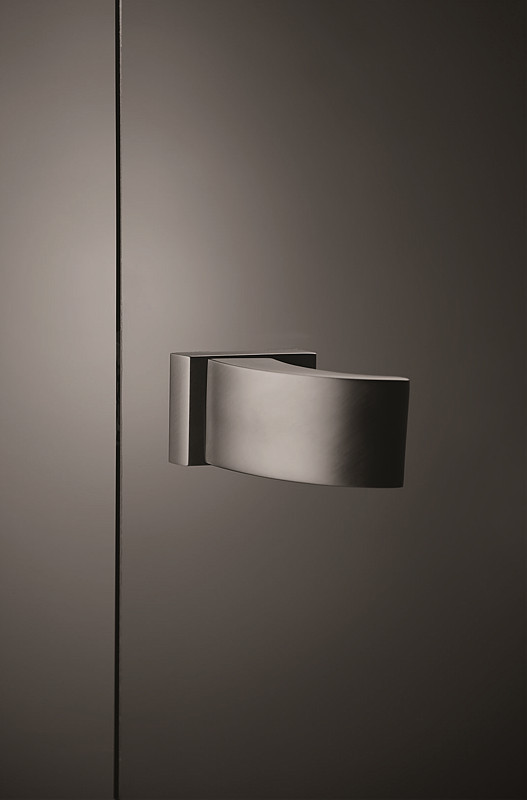

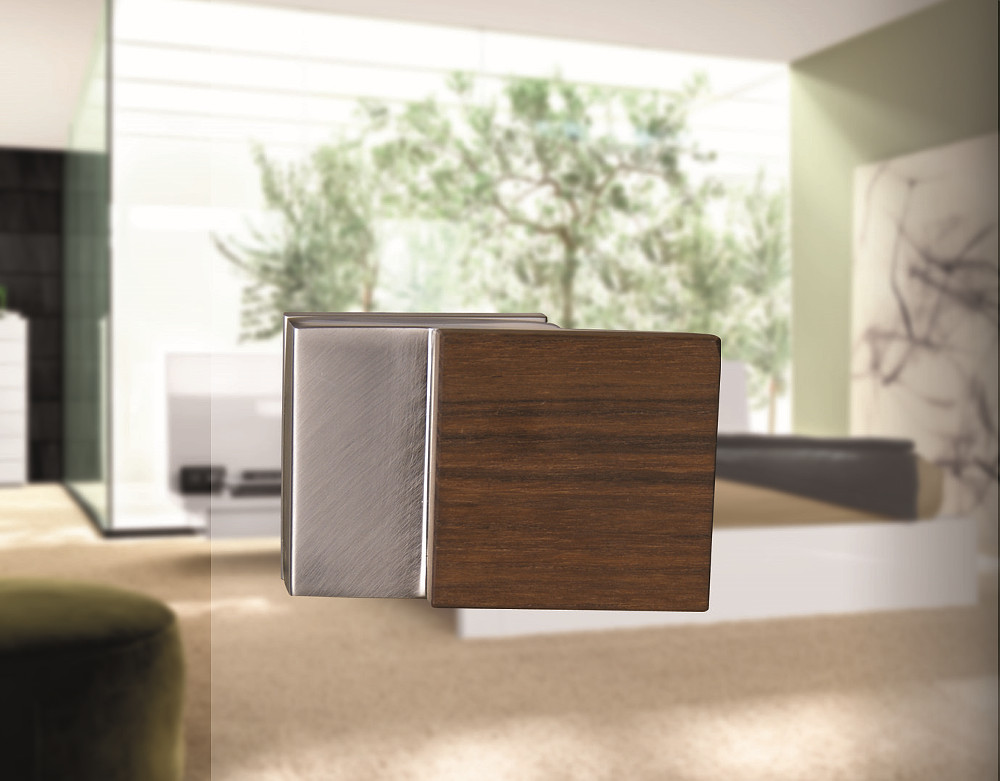

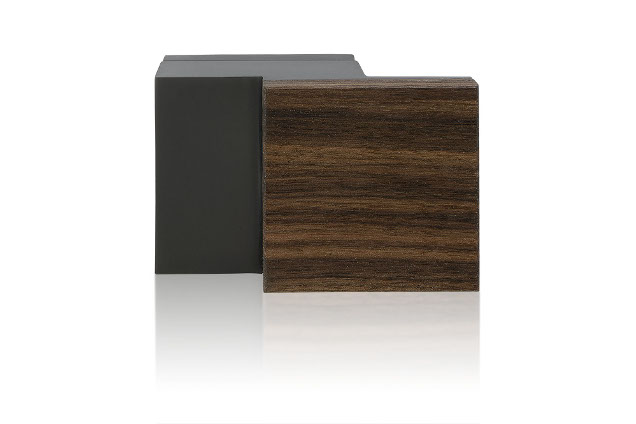

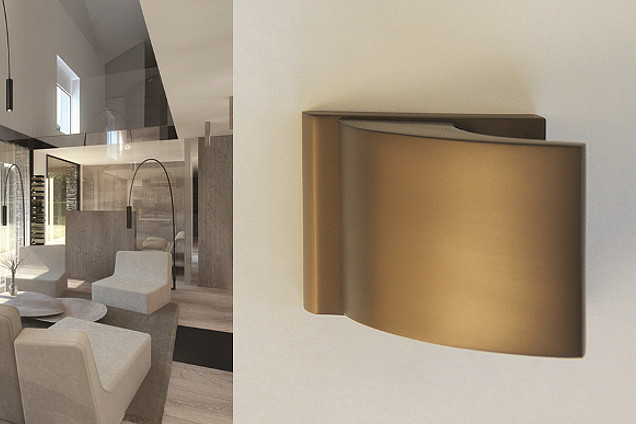

Hand grips and knobs in 9 designs

Technical informations

Specifications
Dimensions

MATERIAL

Massive brass, grinded and polished

AVAILABLE SURFACE FINISHES

Nickel matt, nickel matt - grinded, glossy chrome, titanium surfaces, brass natural

MOUNTING

Screwing against each other in the prepared holes through the door

DIMENSIONAL APPLICATION

For wooden, plastic and aluminium doors, for the door thickness 38 - 85 mm, for glass doors 8 – 12 mm

ACCESSORIES

The package includes:
- fasteners
- assembly instructions
- warranty card

WARRANTY

Surfaces 3 years for nickel and chrome, titanium 15 years, brass natural life time guarantee

APPLICATIONS

Depending on the surface for interior and exterior doors, for door weight up to 60 kg.

SET

A paar of hand grips.

Rozměry

Order numbers

HAND GRIP ENTRY	SNi nickel matt	SNi nickel matt brushed	Cr glossy chrome	Ms brass natural	Ms-L brass polished	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-B titanium brown matt	TiN-A titanium brass matt
HAND GRIP ENTRY	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN
glass thickness 8 - 12 mm	028065	34990	35034	062199	062236	35119	35157	35195	35072
Doorthickness 37 - 50 mm	028034	34570	35003	062168	062205	35089	35126	35164	35041
Doorthickness 51 - 68 mm	028041	34587	35010	062175	062212	35096	35133	35171	35058
Doorthickness 69 - 85 mm	028058	34594	35027	062182	062229	35102	35140	35188	35065

All types of handles are fixed non-rotating. A variant with a rotating Entero handle can be prepared to order.

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.
