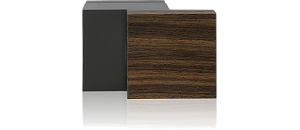

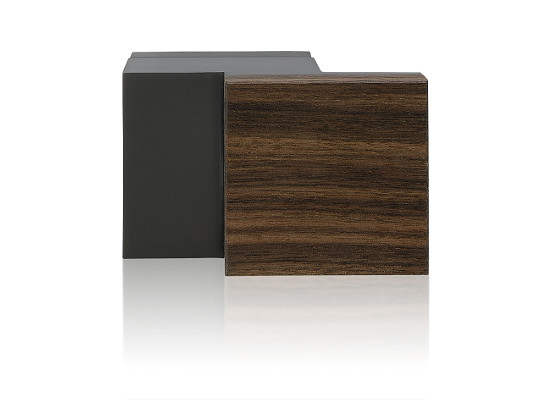

Door hand grip Mimolimit

HAND GRIP SURFACES
6 surfaces

SNi - grinded

Ms-L

TiN-C

TiN-K

TiN-B

more about the surface

zoom

Hand grips and knobs in 9 designs

Technical informations

Specifications
Dimensions

MATERIAL

Massive brass, grinded and polished

AVAILABLE SURFACE FINISHES

Nickel matt, nickel matt - grinded, glossy chrome, titanium surfaces, brass natural

MOUNTING

Screwing against each other in the prepared holes through the door

DIMENSIONAL APPLICATION

For wooden, plastic and aluminium doors, for the door thickness 38 - 85 mm, for glass doors 8 – 12 mm

ACCESSORIES

The package includes:
- fasteners
- assembly instructions
- warranty card

WARRANTY

Surfaces 3 years for nickel and chrome, titanium 15 years, brass natural life time guarantee

APPLICATIONS

Depending on the surface for interior and exterior doors, for door weight up to 60 kg.

SET

A paar of hand grips. The wooden part is to order extra.

Rozměry

Order numbers

HAND GRIP MIMOLIMIT	SNi nickel matt brushed	Ms brass natural	Ms-L brass polished	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-B titanium brown matt
HAND GRIP MIMOLIMIT	EAN	EAN	EAN	EAN	EAN	EAN
glass thickness 8 - 12 mm	32071	061956	061994	32118	34167	34204
Doorthickness 37 - 50 mm	32040	061925	061963	32088	32125	34174
Doorthickness 51 - 68 mm	32057	061932	061970	32095	32132	34181
Doorthickness 69 - 85 mm	32064	061949	061987	32101	32149	34198

All types of handles are fixed non-rotating. A variant with a rotating Entero handle can be prepared to order.

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.
