HAND GRIP SURFFACES
9 surfaces

SNi

SNi - grinded

Ms-L

TiN-C

TiN-K

TiN-B

TiN-A

more about the surface

zoom

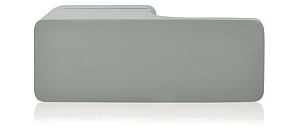

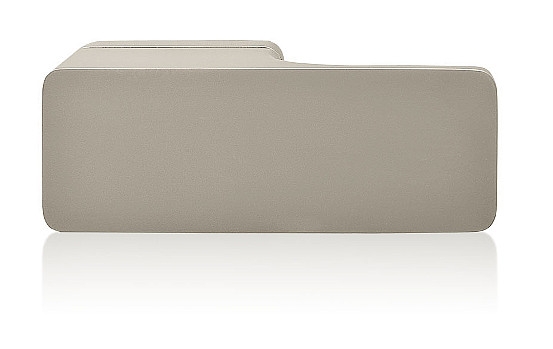

Hand grips and knobs in 9 designs

Technical informations

MATERIAL

Massive brass, grinded and polished

AVAILABLE SURFACE FINISHES

Nickel matt, nickel matt - grinded, glossy chrome, titanium surfaces, brass natural

MOUNTING

Screwing against each other in the prepared holes through the door

DIMENSIONAL APPLICATION

For wooden, plastic and aluminium doors, for the door thickness 38 - 85 mm, for glass doors 8 – 12 mm

ACCESSORIES

The package includes:
- fasteners
- assembly instructions
- warranty card

WARRANTY

Surfaces 3 years for nickel and chrome, titanium 15 years, brass natural life time guarantee

APPLICATIONS

Depending on the surface for interior and exterior doors, for door weight up to 60 kg.

SET

A paar of hand grips.

Rozměry

3D model for visualization

Hand grip Minimal (DWG)

Order numbers

HAND GRIP MINIMAL	SNi nickel matt	SNi nickel matt brushed	Cr glossy chrome	Ms brass natural	Ms-L brass polished	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-B titanium brown matt	TiN-A titanium brass matt
HAND GRIP MINIMAL	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN
Doorthickness 37 - 50 mm	028119	028157	028195	062328	062366	028270	028317	028355	028232
Doorthickness 51 - 68 mm	028126	028164	028201	062335	062373	028287	028324	028362	028249
Doorthickness 69 - 85 mm	028133	028171	028218	062342	062380	028294	028331	028379	028256
glass thickness 8 - 12 mm	028140	028188	028225	062359	062397	028300	028348	028386	028263

All types of handles are fixed non-rotating. A variant with a rotating Entero handle can be prepared to order.

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.
