Pull handle Maximal for sliding doors

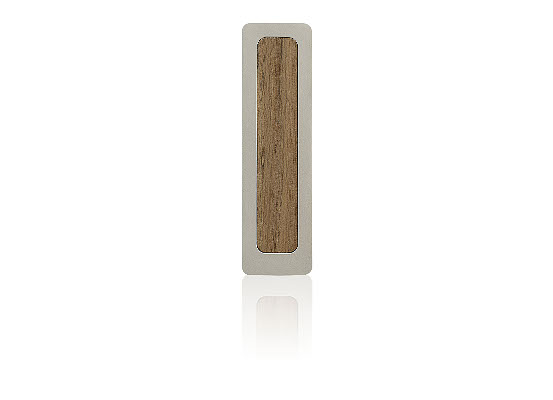

Pull handle MAXIMAL

SNi nickel matt Design: Roman Ulich

Pull handle made of massive brass, with a choice of 18 surfaces and colours, with a guarantee of 3 to 15 years depending on the design, used for all variants of locks. As well we offer models for glass doors.
News - natural brass with a lifetime guarantee.

Pull handle surfaces
18 surfaces

SNi

SNi br.

NRz

TiN-C

Ms-L

Ms-A

Ms-D

TiN-A

TiN-S

TiN-M

TiN-B

TiN-G

TiN-K

K industrial

Cr-K

more about the surface

zoom

Complex solution for all product variants

MATERIAL

Massive brass, grinded, polished

AVAILABLE SURFACE FINISHES

18 surfaces viz. sample book COLOR

MOUNTING

Screw through the doors against each other and then clip the pull handles on each side of the door

MECHANICS

Construction with pressed springs system

DIMENSIONAL APPLICATION

Pull handles are ready for door thickness of 37 mm, pull handles with a locking are ready for the doors of minimum thickness 39 mm, pull handles for glass doors for glass thickness 8-12 mm

ACCESSORIES

The package includes:
- fasteners
- assembly instructions
- warranty card

WARRANTY

Mechanics for pull handles 3 years.
Surfaces 3 years for nickel and chrome, titanium 15 years, brass natural life time guarantee

APPLICATIONS

According the type for wooden or glass doors, for the door weight 60 kg

SET

One piece or a pair of pull handles, the lockable version includes a mortise lock in the color of the front of the lock, similar to the color of the pull handles, counter-plate and cover part. Fillings are to order extra.

Rozměry

Orders numbers

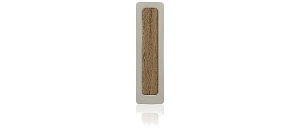

PULL HANDLE MAXIMAL	SNi nickel matt	SNi nickel matt brushed	NRz stainless steel	Cr glossy chrome	Ms brass natural	Ms-A brass antique	Ms-L brass polished	Cr-K chrome black brushed 3D	Ms-D brass old wood
PULL HANDLE MAXIMAL	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN
Standard	pair 001495	pair 001501	pair 188363	pair 001518	pair 060911	pair 188424	pair 060959	pair 188608	pair 188455
Cylindrical rosettes	pair 001631	pair 001648	pair 188370	pair 001655	pair 060935	pair 188431	pair 060973	pair 188615	pair 188462
Toilet / bathroom	pair 001709	pair 001716	pair 188387	pair 001723	pair 060942	pair 188448	pair 060980	pair 188622	pair 188479

PULL HANDLE MAXIMAL	TiN-M titanium cooper grinded	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-G titanium graphite matt	TiN-B titanium brown matt	TiN-S titanum bronze matt	TiN-A titanium brass matt	K-industrial	Wh white matt
PULL HANDLE MAXIMAL	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN
Standard	pair 188516	pair 001525	pair 001549	pair 188547	pair 001532	pair 188486	pair 001556	pair 188578	pair 188394
Cylindrical rosettes	pair 188523	pair 001662	pair 001686	pair 188554	pair 001679	pair 188493	pair 001693	pair 188585	pair 188400
Toilet / bathroom	pair 188530	pair 001730	pair 001754	pair 188561	pair 001747	pair 188509	pair 001761	pair 188592	pair 188417

INSERT MAXIMAL	RAL colours	Wood	Metal	Leather	Effect ”glass”
INSERT MAXIMAL	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN
Flush handle	022506	001778	001785	001792	001808

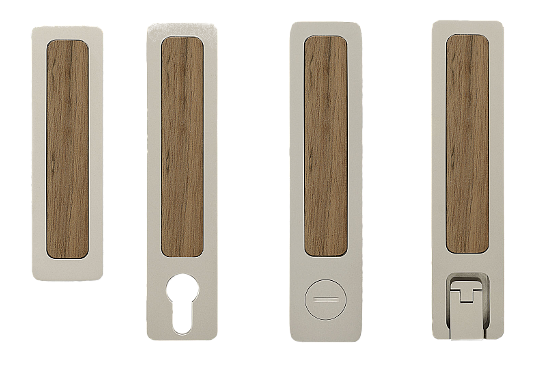

Přehled provedení For the locking version, a set with a mortise lock in the color of the lock face similar to the color of the pull handle, a counter plate and a cover tray.

Component colours
colour design of components

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.
