Pull handle Minimal II for sliding doors

PULL HANDLES SURFACES
18 surfaces

SNi

SNi br.

NRz

TiN-C

Ms-L

Ms-A

Ms-D

TiN-A

TiN-S

TiN-M

TiN-B

TiN-G

TiN-K

K industrial

Cr-K

more about the surface

zoom

Complex solution for all product variants

Technical informations

AVAILABLE SURFACE FINISHES

18 surfaces viz. sample book COLOR

MOUNTING

Screw through the doors against each other and then clip the magnetic cover plate.

MECHANICS

Construction with a system of magnetics plates

DIMENSIONAL APPLICATION

Pull handles are ready for door thickness 38 - 42 mm

ACCESSORIES

The package includes:
- fasteners
- assembly instructions
- warranty card

WARANTY

Mechanics for pull handles 3 years.
Surfaces 3 years for nickel and chrome, titanium 15 years

APPLICATIONS

For wooden doors, for the door weight 60 kg

SET

A piece or a pair of pull handles, the lockable version includes a mortise lock in the color of the front of the lock, similar to the color of the pull handles, counter-plate and cover part.

Rozměry

3D model for visualization

Pull handle Minimal II (DWG)

Orders numbers

PULL HANDLE MINIMAL II	SNi nickel matt	SNi nickel matt brushed	NRz stainless steel - brushed	Cr glossy chrome	Ms brass natural	Ms-A brass antique	Ms-L brass polished	Cr-K chrome black brushed 3D	Ms-D brass old wood
PULL HANDLE MINIMAL II	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN
Standard	pc 101751	pc 188837	pc 188806	pc 101768	pc 188929	pc 188981	pc 188950	pc 189223	pc 189018
Cylindrical rosettes	pair 101812	pair 188844	pair 188813	pair 101829	pair 188936	pair 188998	pair 188967	pair 189230	pair 189025
Toilet / bathroom	pair 101843	pair 188851	pair 188820	pair 101850	pair 188943	pair 189001	pair 188974	pair 189247	pair 189032

PULL HANDLE MINIMAL II	TiN-M titanium cooper grinded	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-G titanium graphite matt	TiN-B titanium brown matt	TiN-S titanum bronze matt	TiN-A titanium brass matt	K-industrial	Wh white matt
PULL HANDLE MINIMAL II	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN
Standard	pc 189100	pc 188868	pc 101775	pc 189162	pc 189131	pc 189070	pc 189049	pc 189193	pc 188899
Cylindrical rosettes	pair 189117	pair 188875	pair 101836	pair 189179	pair 189148	pair 189087	pair 189056	pair 189209	pair 188905
Toilet / bathroom	pair 189124	pair 188882	pair 101867	pair 189186	pair 189155	pair 189094	pair 189063	pair 189216	pair 188912

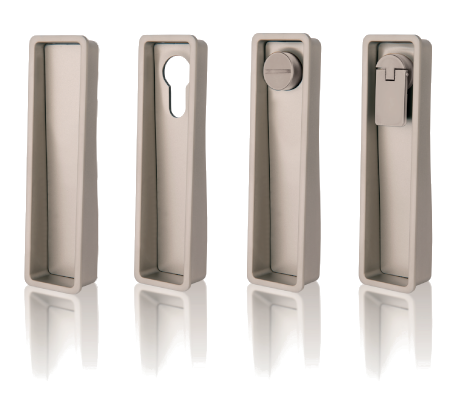

Přehled provedení For the locking version, a set with a mortise lock in the color of the lock face similar to the color of the pull handle, a counter plate and a cover tray.

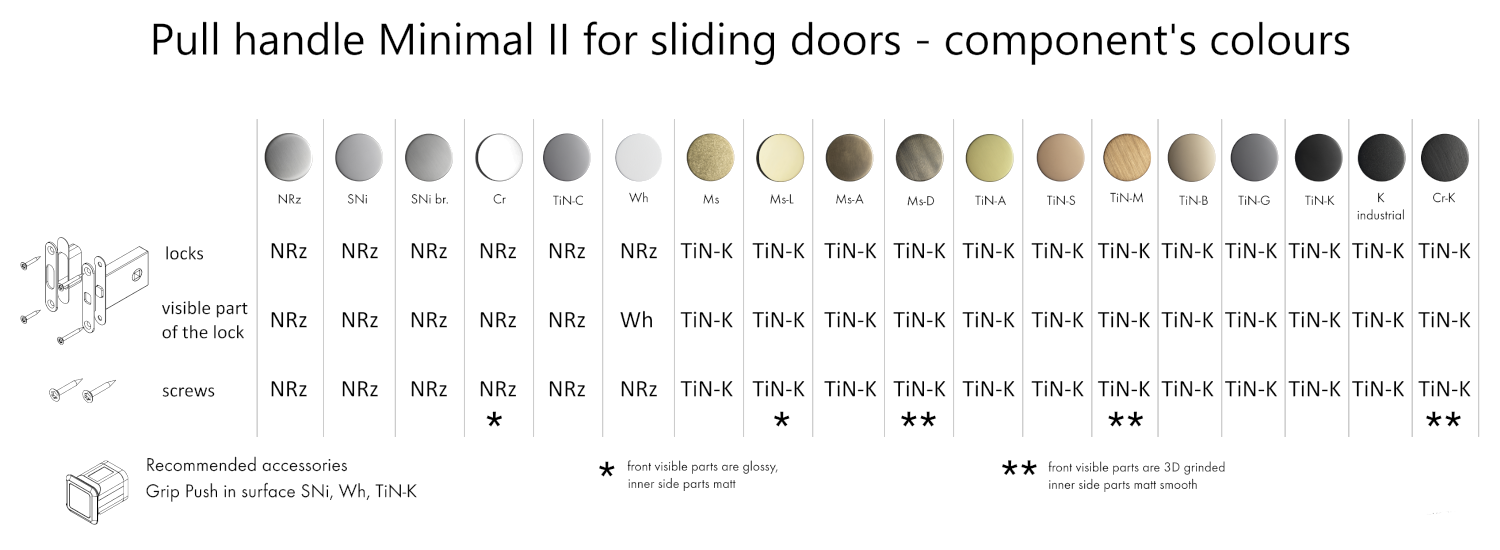

Component colours
colour design of components

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.
