Pull handle Minimal for sliding doors

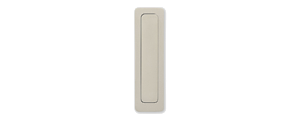

Pull handle MINIMAL

SNi nickel matt Design: Roman Ulich

Pull handle made of massive brass, with a choice of 18 surfaces and colours, with a guarantee of 3 to 15 years depending on the design, used for all variants of locks. As well we offer models for glass doors.
News - natural brass with a lifetime guarantee.

Pull handle surfaces
18 surfaces

SNi

SNi br.

TiN-C

Ms-L

Ms-A

Ms-D

TiN-A

TiN-S

TiN-M

TiN-B

TiN-G

TiN-K

K industrial

Cr-K

more about the surface

zoom

Complex solution for all product variants

MATERIAL

Massive brass, grinded, polished

AVAILABLE SURFACE FINISHES

18 surfaces viz. sample book COLOR

MOUNTING

Screw through the doors against each other and then clip the pull handles on each side of the door

MECHANICS

Construction with pressed springs system

DIMENSIONAL APPLICATION

Pull handles are ready for door thickness of 37 mm, pull handles with a locking are ready for the doors of minimum thickness 39 mm, pull handles for glass doors for glass thickness 8-12 mm

ACCESSORIES

The package includes:
- fasteners
- assembly instructions
- warranty card

WARRANTY

Mechanics for pull handles 3 years.
Surfaces 3 years for nickel and chrome, titanium 15 years, brass natural life time guarantee

APPLICATIONS

According the type for wooden or glass doors, for the door weight 60 kg

SET

A piece or a pair of pull handles, the lockable version includes a mortise lock in the color of the front of the lock, similar to the color of the pull handles, counter-plate and cover part.

Rozměry

Orders numbers

PULL HANDLE MINIMAL	SNi nickel matt	SNi nickel matt brushed	NRz stainless steel	Cr glossy chrome	Ms brass natural	Ms-A brass antique	Ms-L brass polished	Cr-K chrome black brushed 3D	Ms-D brass old wood
PULL HANDLE MINIMAL	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN
Standard	pair 001211	pair 001228	pair 188189	pair 001235	pair 060836	pair 180596	pair 060874	pair 180558	pair 188240
Cylindrical rosettes	pair 001358	pair 001365	pair 188196	pair 001372	pair 060850	pair 180619	pair 060898	pair 180572	pair 188257
Toilet / bathroom	pair 001426	pair 001433	pair 188202	pair 001440	pair 060867	pair 180626	pair 060904	pair 180589	pair 188264

PULL HANDLE MINIMAL	TiN-M titanium cooper grinded	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-G titanium graphite matt	TiN-B titanium brown matt	TiN-S titanum bronze matt	TiN-A titanium brass matt	K-industrial	Wh white matt
PULL HANDLE MINIMAL	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN
Standard	pair 180510	pair 001242	pair 001266	pair 188301	pair 001259	pair 188271	pair 001273	pair 188332	pair 188219
Cylindrical rosettes	pair 180534	pair 001389	pair 001402	pair 188318	pair 001396	pair 188288	pair 001419	pair 188349	pair 188226
Toilet / bathroom	pair 180541	pair 001457	pair 001471	pair 188325	pair 001464	pair 188295	pair 001488	pair 188356	pair 188233

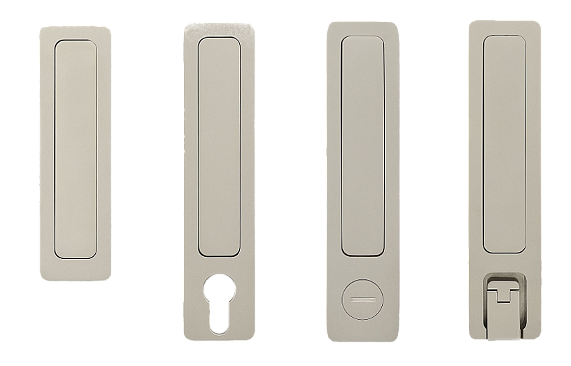

Přehled provedení For the locking version, a set with a mortise lock in the color of the lock face similar to the color of the pull handle, a counter plate and a cover tray.

Component colours
colour design of components

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.
