Handle 250 mm / HS portal Mimolimit

Handle 250 mm MIMOLIMIT to HS portal systems

SNi - grinded nickel matt - grinded Design: Bára Škorpilová

HS portals made of massive brass with a choice of 7 colours & surfaces, with a guarantee of 3-15 years, depending on the design, used for wooden and aluminium windows. You can choose of different wooden fillings.
News - natural brass with a lifetime guarantee.

Handle surfaces
7 surfaces

SNi - grinded

Ms-L

TiN-C

TiN-K

TiN-B

more about the surface

Extraordinery design of HS portals M&T

MATERIAL

Massive brass, grinded and polished

AVAILABLE SURFACE FINISHES

Nickel matt - grinded, glossy chrome, titanium surfaces, brass natural

MOUNTING

Using the positioning mechanism and screws into the window frame, eventually to a pair of opposed through a window frame.

MECHANICS

The positioning mechanism with a very strong spindle 10x10 mm made of stainless steel.

DIMENSIONAL APPLICATION

For a wooden, aluminium or plastic windows for the frame thickness 55 - 120 mm. The frame thickness is needed to specify exactly.

ACCESSORIES

The package includes:
- fasteners
- positioning mechanism fixed to a handle
- cover plate of mechanism
- strong spindle
- assembly instructions
- warranty card

WARRANTY

Mechanics 3 years.
Surfaces 3 years nickel and chrome, titanium 15 years, brass natural life time guarantee

APPLICATIONS

For all of window types with the HS portal system.

SET

One sided window handle with a cover plate or two-sided design. The wooden is to order extra.

Rozměry

Order numbers

HANDLE 250 MM MIMOLIMIT	SNi nickel matt brushed	Cr glossy chrome	Ms brass natural	Ms-L brass polished	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-B titanium brown matt
HANDLE 250 MM MIMOLIMIT	EAN	EAN	EAN	EAN	EAN	EAN	EAN
One-sided	pc 026108	pc 026115	pc 059854	pc 059885	pc 026122	pc 026146	pc 026139
One-sided with cylindrical hole	pc 064872	pc 064889	pc 064926	pc 064933	pc 064896	pc 064919	pc 064902
Double sided	pair 026153	pair 026160	pair 059861	pair 059892	pair 026177	pair 026191	pair 026184
Double sided with cylindrical hole	pair 028478	pair 028485	pair 059878	pair 059908	pair 028492	pair 028515	pair 028508

WOODEN PART OF HAND GRIP MIMOLIMIT 250 MM	Teak	Elm	Nut	Oak	Bleached oak
WOODEN PART OF HAND GRIP MIMOLIMIT 250 MM	EAN	EAN	EAN	EAN	EAN
Plate	pc 026207	pc 026214	pc 026221	pc 026238	pc 026245

PULL HANDLE MINIMAL EXTERNAL	SNi nickel matt	SNi nickel matt brushed	Cr glossy chrome	Ms brass natural	Ms-L brass polished	Cr-K chrome black brushed 3D	Ms-D brass old wood	TiN-C titanium chrome matt	TiN-K titanium black matt
PULL HANDLE MINIMAL EXTERNAL	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN
External flush handle	pc 002201	pc 002218	pc 002225	pc 059915	pc 059939	pc 087970	pc 200669	pc 002232	pc 002256
Flush handle with cylindrical hole	pc 022544	pc 022551	pc 022568	pc 059922	pc 059946	pc 087987	pc 200676	pc 022575	pc 022599

PULL HANDLE MINIMAL EXTERNAL	TiN-B titanium brown matt	TiN-S titanum bronze matt	TiN-A titanium brass matt
PULL HANDLE MINIMAL EXTERNAL	EAN	EAN	EAN
External flush handle	pc 002249	pc 241327	pc 002263
Flush handle with cylindrical hole	pc 022582	pc 241334	pc 022605

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.

SUSTAINABILITY

we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.

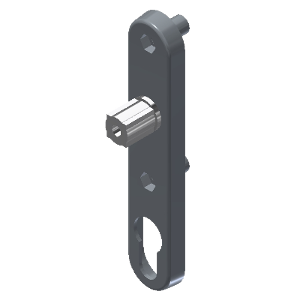

Positioning mechanism of HS portals

Positioning mechanism with 3 positions

Metal mechanism with an inner metal construction guaranteeing an exact positionability in 3 positions and a firm fixation using a very strog spindle 10x10 mm made of stainless steel. With a mounting for frame thickness of 55 - 120 mm.
