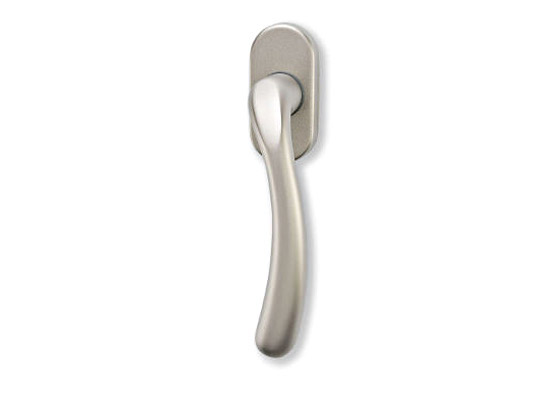

Window handle BURAK

SNi nickel matt

Window handles made of massive brass with a choice of 9 colours & surfaces, with a guarantee of 3-15 years, depending on the design, used for wood, aluminium and plastic windows.
News - natural brass with a lifetime guarantee.

Okenní klika Burak

Handle surfaces
9 surfaces

SNi
SNi
Cr
Cr
Ms
Ms
Ms-L
Ms-L
Cr-K
Cr-K
TiN-C
TiN-C
TiN-K
TiN-K
TiN-S
TiN-S
TiN-A
TiN-A

Selection all of designs and surfaces of window handles

Technical informations

MATERIAL
  • Massive brass, grinded and polished
AVAILABLE SURFACE FINISHES
  • Nickel matt, nickel matt - grinded, glossy chrome, titanium surfaces, brass natural
MOUNTING
  • Using the window positioning mechanism into the window frame, providing a set screw for the handle mechanism.
MECHANICS
  • The positioning mechanism with 3 and 4 positions with a spindle 7x7 mm in the window frame, the standard length is 38 mm.
DIMENSIONAL APPLICATION
  • For a wooden, plastic and aluminium windows with a spindle 38 mm. Another lenghts are: 32, 42, 50 and 54 mm in the window frame.
ACCESSORIES
  • The package includes:
    • fasteners
    • assembly instructions
    • warranty card
WARRANTY
  • Mechanics 3 years.
    Surfaces 3 years nickel and chrome, titanium 15 years, brass natural life time guarantee
APPLICATIONS
  • For all of window types with a standard positioning mechanics
SET
  • Window handle with a cover rosette. It is needed to order extra the type of positioning mechnism, either plastic or metall and choose the right spindle lenght for the window frame.


Rozměry
Dimensions of the positioning mechnism
Dimensions of the positioning mechnismhanismu

Order numbers

BURAK

BURAK

Povrch kliky
SNi
nickel matt
Povrch kliky
Cr
glossy chrome
Povrch kliky
Ms
brass natural
Povrch kliky
Ms-L
brass polished
Povrch kliky
TiN-C
titanium chrome matt
Povrch kliky
TiN-K
titanium black matt
Povrch kliky
TiN-S
titanum bronze matt
Povrch kliky
TiN-A
titanium brass matt
EANEANEANEANEANEANEANEAN
4 positions L363833639005917505938036413364203640636437
4 positions R363213633805916805937336352363693634536376



WINDOW MECHANISM

WINDOW MECHANISM

Povrch kliky
EAN
Metal 37 mm119770
Metal 42 mm119787
Metal 50 mm119794
Metal 61 mm119800
Plastic90309

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.

SUSTAINABILITY

we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.

Positioning mechanism of window handles

Polohovací mechanismus plastový

Positioning mechanism plastic

Plastic mechanism with an inner plastic construction guaranteeing very quiet running even after long use, the disadvantage can be a looseness between the window handle and mechanism caused by plastic characters (elasticity).

Polohovací mechanismus kovový

Positioning mechanism metal

Metal mechanism with an inner metal construction guaranteeing an exact positionability and firm fixation of the window handle in the mechanism, disadvantage can be a noisier running by long use (regular maintenance needed).
