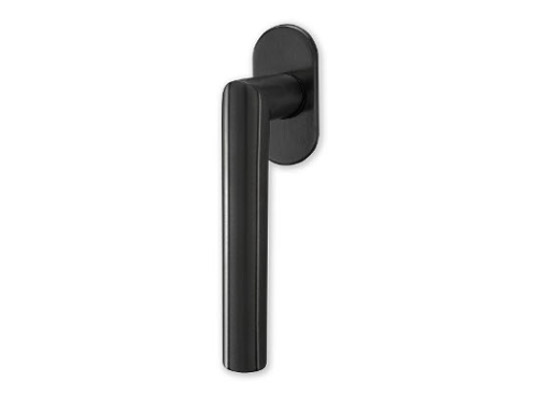

Window handle LUSY with a flat rosette

TiN-K titanium black matt

Window handles made of stainless steel with a choice of 3 colours & surfaces, with a guarantee of 5-15 years, depending on the design, used for wood, aluminium and plastic windows

Okenní klika Lusy

Handle surfaces
3 surfaces

NRz
NRz
TiN-K
TiN-K
K-industrial
K-industrial

Selection all of designs and surfaces of window handles

Technical informations

MATERIAL
  • Stainless steel
AVAILABLE SURFACE FINISHES
  • Stainless steel - grinded, titanium black matt, black matt structured
MOUNTING
  • Using the window positioning mechanism into the window frame, providing a set screw for the handle mechanism.
MECHANICS
  • The positioning mechanism with 3 and 4 positions with a spindle 7x7 mm in the window frame, the standard length is 38 mm.
DIMENSIONAL APPLICATION
  • For a wooden, plastic and aluminium windows with a spindle 38 mm. Another lenghts are: 32, 42, 50 and 54 mm in the window frame.
ACCESSORIES
  • The package includes:
    • fasteners
    • assembly instructions
    • warranty card
WARRANTY
  • Mechanics 3 years.
    Surfaces 3 years nickel and chrome, black matt structured 5 years, titanium 15 years, brass natural life time guarantee
APPLICATIONS
  • For all of window types with a standard positioning mechanics
SET
  • Window handle with a cover rosette. It is needed to order extra the type of positioning mechanism, either plastic or metall and choose the right spindle lenght for the window frame.

Dimensions Dimensions Dimensions of the positioning mechanism
Dimensions

Order numbers

LUSY

LUSY

Povrch kliky
NRz
stainless steel
Povrch kliky
TiN-K
titanium black matt
Povrch kliky
K-industrial
EANEANEAN
Flat rectangular rosette4826348287034011
Flat oval rosette4861448621034004

The window mechanism is part of the window handle accessory.

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.

SUSTAINABILITY

we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.

Positioning mechanism of window handles

Polohovací mechanismus ploché rozety

Positioning mechanism of the flat rosette

Metal mechanism with an inner metal construction guaranteeing an exact positionability in 3 positions and firm fixation of the window handle in the mechanism. A part of the mechanism is sink into the window frame.
