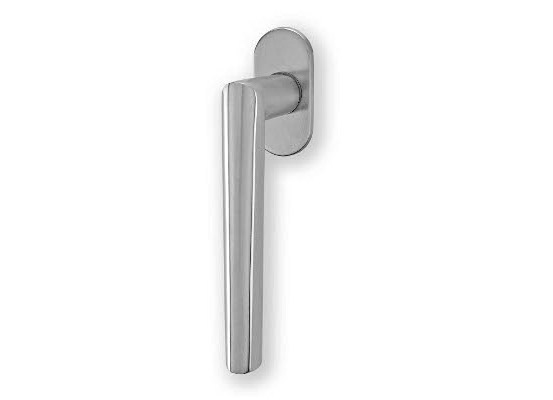

Stainless steel window handle Morgan, flat rosette

Handle surfaces
3 surfaces

NRz

TiN-K

K-industrial

more about the surface

Selection all of designs and surfaces of window handles

Technical informations

Specifications
Dimensions

MATERIAL

Stainless steel

AVAILABLE SURFACE FINISHES

Stainless steel - grinded, titanium black matt, black matt structured

MOUNTING

Using the window positioning mechanism into the window frame, providing a set screw for the handle mechanism.

MECHANICS

The positioning mechanism with 3 positions with a spindle 7x7 mm in the window frame, the standard length is 40 mm.

DIMENSIONAL APPLICATION

For a wooden, plastic and aluminium windows with a spindle 40 mm. Another lenghts are: 32, 42, 50 and 54 mm in the window frame.

ACCESSORIES

The package includes:
- fasteners
- positioning mechanism
- assembly instructions
- warranty card

WARRANTY

Mechanics 3 years.
Surfaces 3 years for stainless steel, black matt structured 5 years, 15 years for titanium

APPLICATIONS

For all of window types with a standard positioning mechanics

SET

Window handle with a cover rosette and with a positioning mechanism.

Dimensions of the positioning mechanism

Order numbers

MORGAN	NRz stainless steel	TiN-K titanium black matt	K-industrial
MORGAN	pc EAN	pc EAN	pc EAN
Flat rectangular rosette	48423	48430	033991
Flat oval rosette	48638	48645	033984

The window mechanism is part of the window handle accessory.

Positioning mechanism of window handles

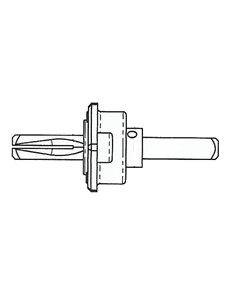

Positioning mechanism of the flat rosette

Metal mechanism with an inner metal construction guaranteeing an exact positionability in 3 positions and firm fixation of the window handle in the mechanism. A part of the mechanism is sink into the window frame.
