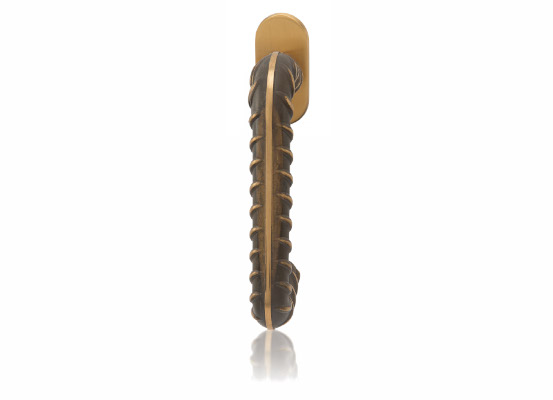

Window handle Rocksor U with 3 and 4 positions

HANDLES SURFACES
6 surfaces

Ms-K

Ms-A

Ms-L

TiN-C

TiN-K

K-industrial

more about the surface

Selection all of designs and surfaces of window handles

Technical informations

Specification
Dimensions

MATERIAL

Massive brass

AVAILABLE SURFACE FINISHES

Brass natur, brass antique, brass polished, titanium chrome matt, titanium black matt, black matt structured

MOUNTING

Using the window positioning mechanism into the window frame, providing a set screw for the handle mechanism.

MECHANICS

The positioning mechanism with 3 positions with a spindle 7x7 mm in the window frame, the standard length is 40 mm.

DIMENSIONAL APPLICATION

For a wooden, plastic and aluminium windows with a spindle 40 mm. Part of the mechanics is inserted in the window frame.

ACCESSORIES

The package includes:
- fasteners
- positioning mechanism
- assembly instructions
- warranty card

WARRANTY

Mechanics 3 years.
Life-time guarantee for brass, black matt structured 5 years, for titanium 15 years

APPLICATIONS

For all of window types with a standard positioning mechanism.

SET

Window handle with a cover rosette and a positioning mechanism.

Rozměry
Dimensions of the positioning mechnism

For more informations please contact us at info@kliky-mt.cz.

Order numbers

WINDOW HANDLE ROCKSOR U	Ms-K brass natural	Ms-A brass antique	Ms-L brass polished	TiN-C titanium chrome matt	TiN-K titanium black matt
WINDOW HANDLE ROCKSOR U	EAN	EAN	EAN	EAN	EAN
Flat oval rosette	095074	095067	095081	095098	095104

Positioning mechanism of window handles

Positioning mechanism of the flat rosette

Metal mechanism with an inner metal construction guaranteeing an exact positionability in 3 positions and firm fixation of the window handle in the mechanism. A part of the mechanism is sink into the window frame.
