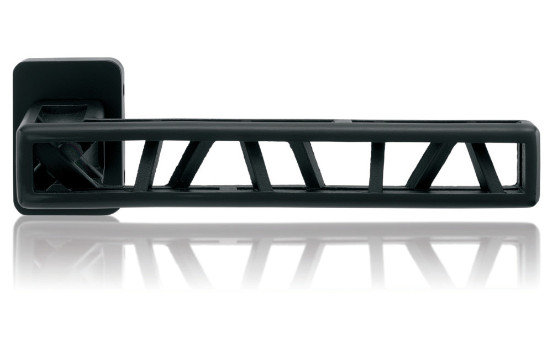

Door handle Industry Squelette

TiN-K titanium black matt

Door handles made of stainless steel, with a choice of 6 surfaces and colours, with a guarantee of 5-15 years depending on the design, used for aluminium, steel, plastic and wooden doors and exterior gates.

Dveřní klika Industry Squelette

HANDLES SURFACES
6 surfaces

NRz
Stainless steel
Tin-K
TiN-K
Tin-B
TiN-B
Tin-A
TiN-A
Tin-C
TiN-C
K-industrial
K-industrial

New construction with the perfect mechanics

Technical informations

MATERIAL
  • Stainless steel
AVAILABLE SURFACE FINISHES
  • Stainless steel, titanium black matt, titanium brown matt, titanium brass matt, titanium chrome matt, black matt structured
MOUNTING
  • Using up to 12 self-tapping screws or a combination of screws with a rivet nut. Another fixation of handles and rosettes using set screws M6 and M4.
MECHANICS
  • M 2013 with the pressed springs system
DIMENSIONAL APPLICATION
  • Standard for door thickness 38-45 mm, possibility for door thickness 38-126 mm
ACCESSORIES
  • The package includes:
    • spindle
    • set screws
    • glue gel
    • fasteners
    • assembly instructions
    • warranty card
WARANTY
  • Mechanics 3 years.
    Stainless steel 5 years, black matt structured 5 years, titanium 15 years.
APPLICATIONS
  • According the type of the surface, for interior and exterior doors, for door weight up to 60 kg.
SET
  • The set is without bottom rosettes, they are to order extra.


Dimensions

Order numbers

HANDLE INDUSTRY SQUELETTE FOR ALUMINIUM PROFILES

HANDLE INDUSTRY SQUELETTE FOR ALUMINIUM PROFILES

Povrch kliky
NRz
stainless steel
Povrch kliky
TiN-C
titanium chrome matt
Povrch kliky
TiN-K
titanium black matt
Povrch kliky
TiN-B
titanium brown matt
Povrch kliky
TiN-A
titanium brass matt
Povrch kliky
K-industrial
EANEANEANEANEANEAN
Handle / handle104493104691104578104615104653104530
Grip / handle L104509104707104585104622104660104547
Grip / handle R104516104714104592104639104677104554

Protipožární provedení (kovové podrozety + nerezové spojovací prvky, čtyřhran) ... příplatek 380,- Kč ... EAN 082289



ROSETTES 33×49 MM

ROSETTES 33×49 MM

Povrch kliky
NRz
stainless steel
Povrch kliky
TiN-K
titanium black
Povrch kliky
TiN-C
titanium chrome matt
Povrch kliky
TiN-B
titanium brown matt
Povrch kliky
TiN-A
titanium brass matt
Povrch kliky
K-industrial
EANEANEANEANEANEAN
Cylindrical rosettes024098024111104721104646104684034059

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.

SUSTAINABILITY

we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.

Manufacture mechanics M 2013

Manufakturní mechanika M 2013

More about the mechanics

Mechanics M 2013 – designed, manufactured and assembled at M&T. With its own patent with system of pressed springs, a nut of stainless steel, a pair of riveting nuts with M4 screws and four self tapping screws with a dril for maximum fixation.

view more

Suitability of individual designs - the shapes of handles for a specific order must be verified by the manufacturer of the doors according the Dornmas dimension of the selected lock. For a lock with the Dornmas dimension of 40 mm and more can be used all of the M&T handles for aluminum and steel doors.
