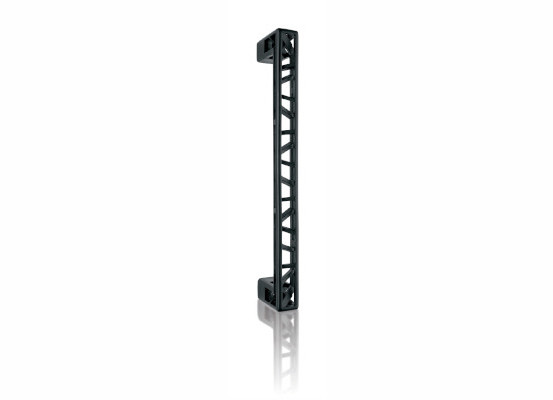

Hand grip Industry Squelette

HAND GRIPS SURFACES
7 surfaces

Stainless steel

Stainless steel polished

TiN-K

TiN-B

TiN-A

TiN-C

K-industrial

more about the surface

zoom

Unique design even on long hand grips

Technical informations

Specification
Dimensions

MATERIAL

Stainless steel

AVAILABLE SURFACE FINISHES

Stainless steel, stainless steel polished, titanium black matt, titanium brown matt, titanium brass matt, titanium chrome matt, black matt structured

MOUNTING

There are two mounting variants: Either in a blind hole, when it is necessary to specify the material of the door (plastic, wood, aluminium) or mounting with screws through the door, when there is a mounting possibility for a glass doors.

MECHANICS

From the inner side of the door there is a possibility of mounting one-sided handle with Mechanics M 2018 and a spindle.

DIMENSIONAL APPLICATION

For a wooden, plastic and aluminium doors for the standard door thickness 38-126 mm, for glass doors 8-12 mm

ACCESSORIES

The package includes:
- fasteners according to the price list
- assembly instructions
- warranty card

WARRANTY

Stainless steel 5 years, black matt structured 5 years, titanium 15 years

APPLICATIONS

According the type of surface for the interior and exterior doors, for door weight up to 60 kg

SET

Set of hand grips or one sided hand grip. It is needed to order the right mounting material according the type of door, eventually the spindle to one sided handle.

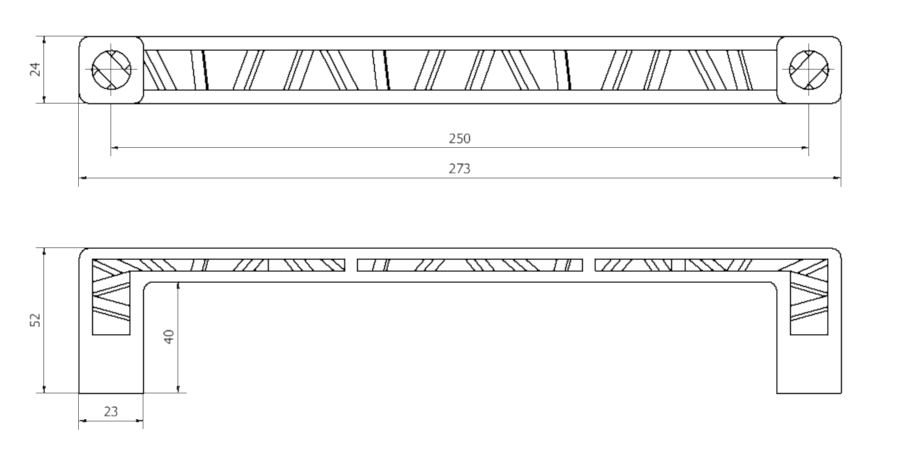

Rozměry

3D model for visualization

Hand grip long Rocksor (DWG)

Order numbers

HAND GRIP LONG INDUSTRY SQUELETTE	NRz stainless steel	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-B titanium brown matt	TiN-A titanium brass matt	K-industrial
HAND GRIP LONG INDUSTRY SQUELETTE	EAN	EAN	EAN	EAN	EAN	EAN
distance 250 mm one-sided	103847	104042	103922	103960	104004	103885
distance 250 mm double sided	103830	104035	103915	103953	103991	103878

	MOUNTING MATERIAL FOR HAND GRIPS
	MOUNTING MATERIAL FOR HAND GRIPS	EAN
	One-sided to blind hole - wood	030228
	One-sided to blind hole - aluminium	030211
	One-sided to blind hole - plastic	030204
	One-sided for glas with screwing through and blind cover	003031
	One-sided with screwing through and blind cover	003024
	Double sided	003048
	Double sided for glass	003055
