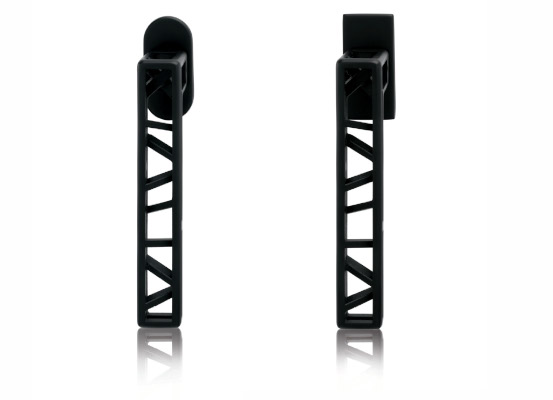

Window handle Industry Squelette

HANDLES SURFACES
6 surfaces

Stainless steel

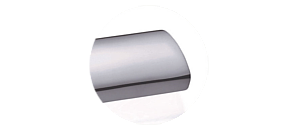

Stainless steel polished

TiN-K

TiN-B

TiN-A

TiN-C

K-industrial

more about the surface

Selection all of designs and surfaces of window handles

Technical informations

Specifications
Dimensions

MATERIAL

Stainless steel

AVAILABLE SURFACE FINISHES

Stainles steel, stainles steel polished, titanium black matt, titanium brown matt, titanium brass matt, titanium chrome matt, black matt structured

MOUNTING

Using the window positioning mechanism into the window frame, providing a set screw for the handle mechanism.

MECHANIKA

The positioning mechanism with 3 positions with a spindle 7x7 mm in the window frame, the standard length is 40 mm.

DIMENSIONAL APPLICATION

For a wooden, plastic and aluminium windows with a spindle 40 mm. Part of the mechanics is inserted in the window frame.

ACCESSORIES

The package includes:
- fasteners
- positioning mechanism
- assembly instructions
- warranty card

WARRANTY

Mechanics 3 years.
Stainless steel 5 years, black matt structured 5 years, titanium 15 years

APPLICATIONS

For all of window types with a standard positioning mechanism.

SET

Window handle with a cover rosette and a positioning mechanism.

Rozměry
Dimensions of the positioning mechnism

For more informations please contact us at info@kliky-mt.cz.

Order numbers

WINDOW HANDLE INDUSTRY SQUELETTE	NRz stainless steel	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-B titanium brown matt	TiN-A titanium brass matt	K-industrial
WINDOW HANDLE INDUSTRY SQUELETTE	EAN	EAN	EAN	EAN	EAN	EAN
Flat rectangular rosette	104387	104486	104424	104448	104462	104400
Flat oval rosette	104370	104479	104417	104431	104455	104394

Positioning mechanism of window handles

Positioning mechanism of the flat rosette

Metal mechanism with an inner metal construction guaranteeing an exact positionability in 3 positions and firm fixation of the window handle in the mechanism. A part of the mechanism is sink into the window frame.
